Spatial Audio Designer Processor
Next-generation audio processor

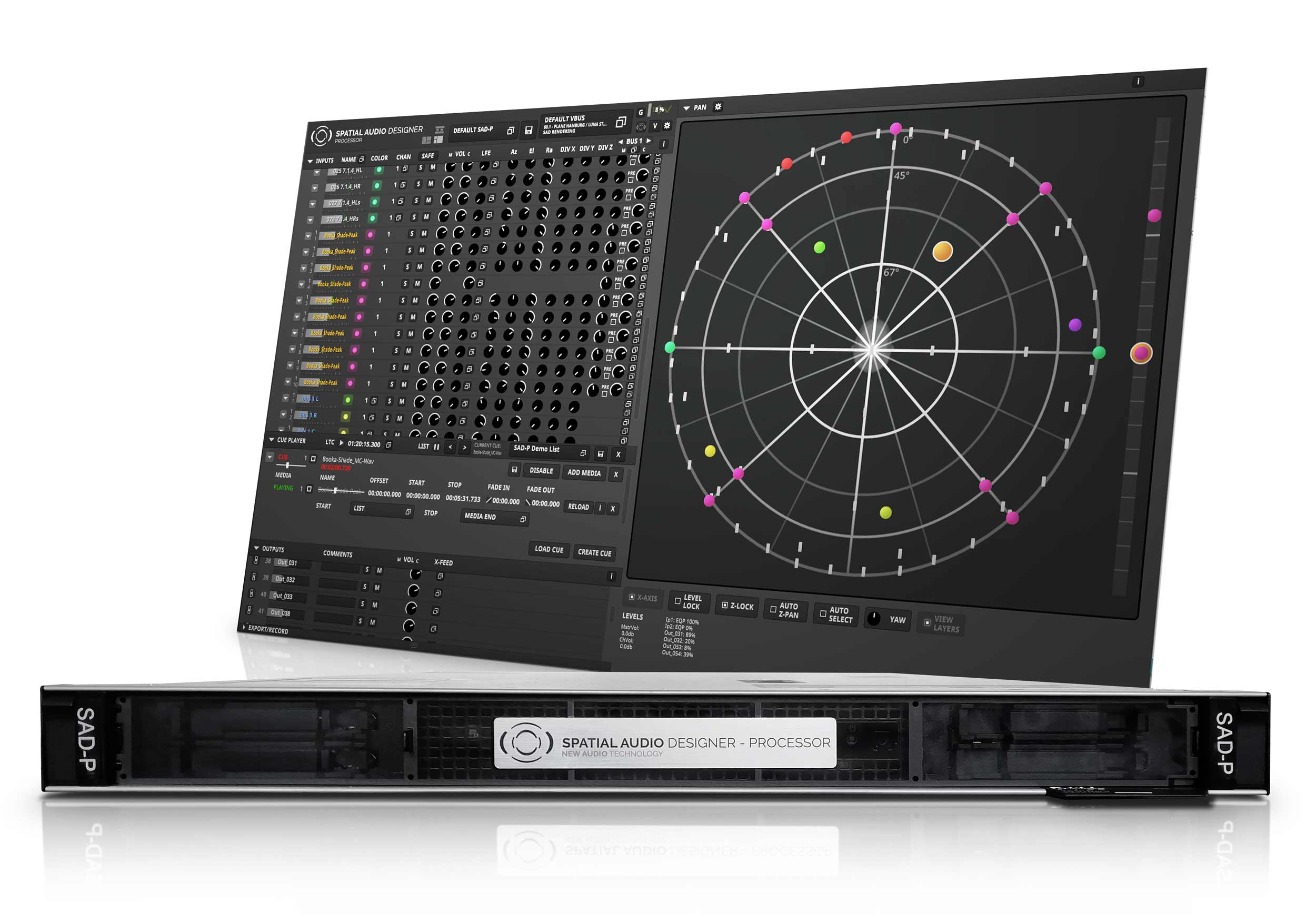

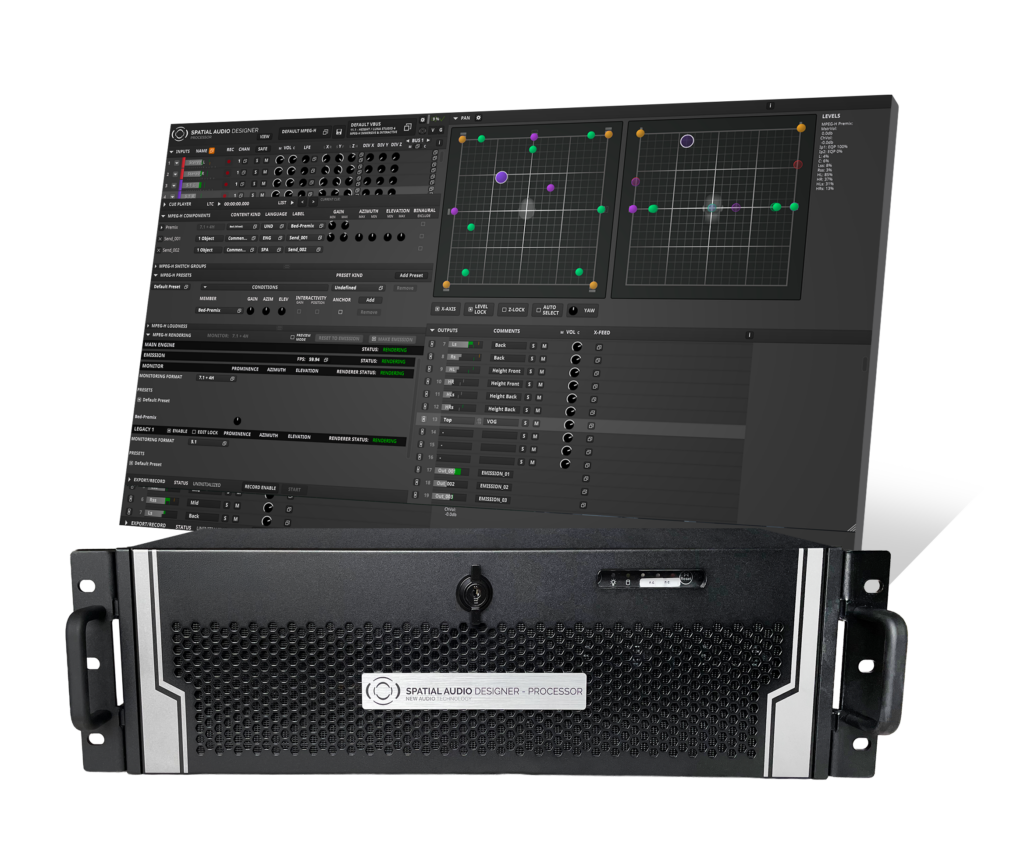

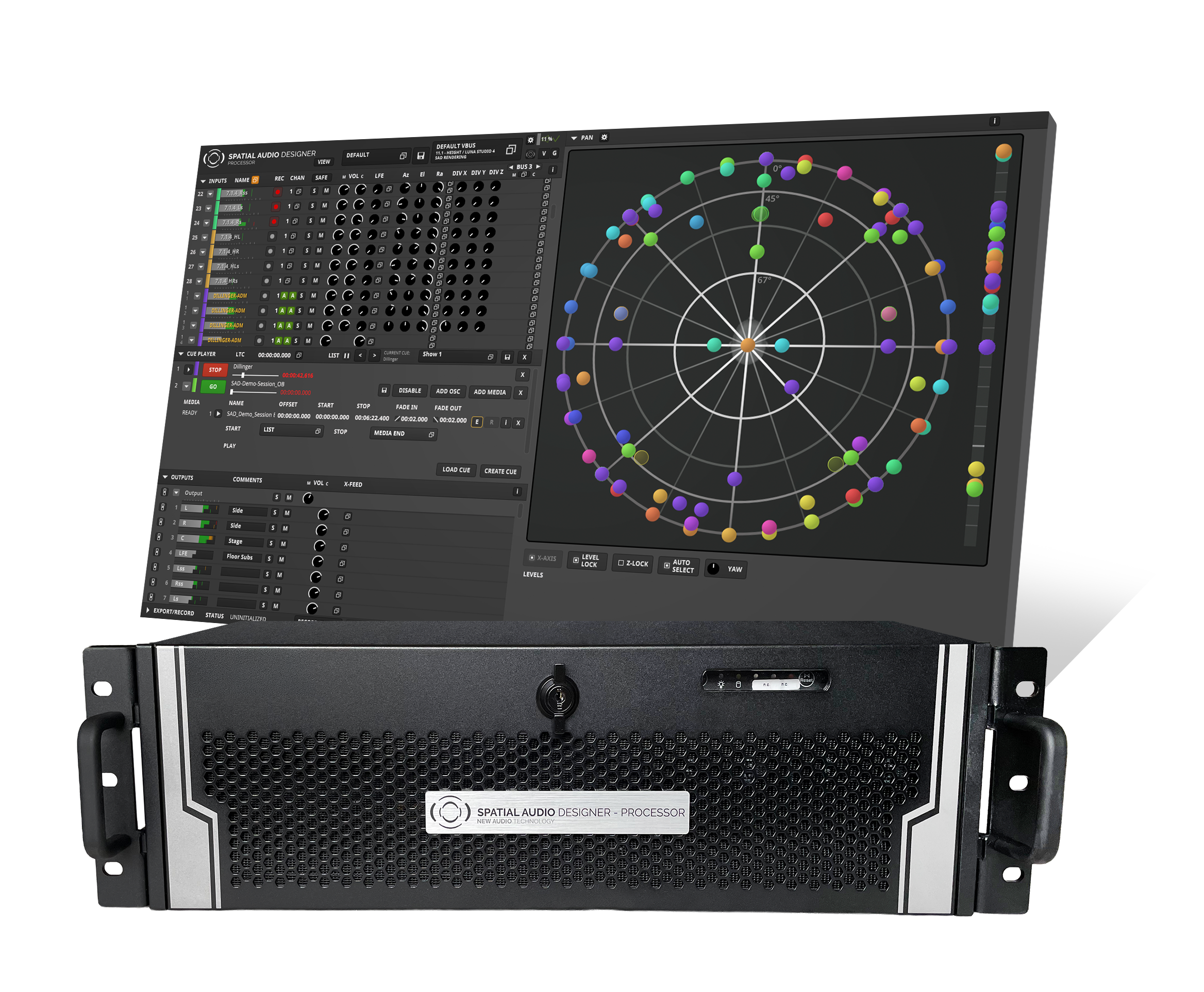

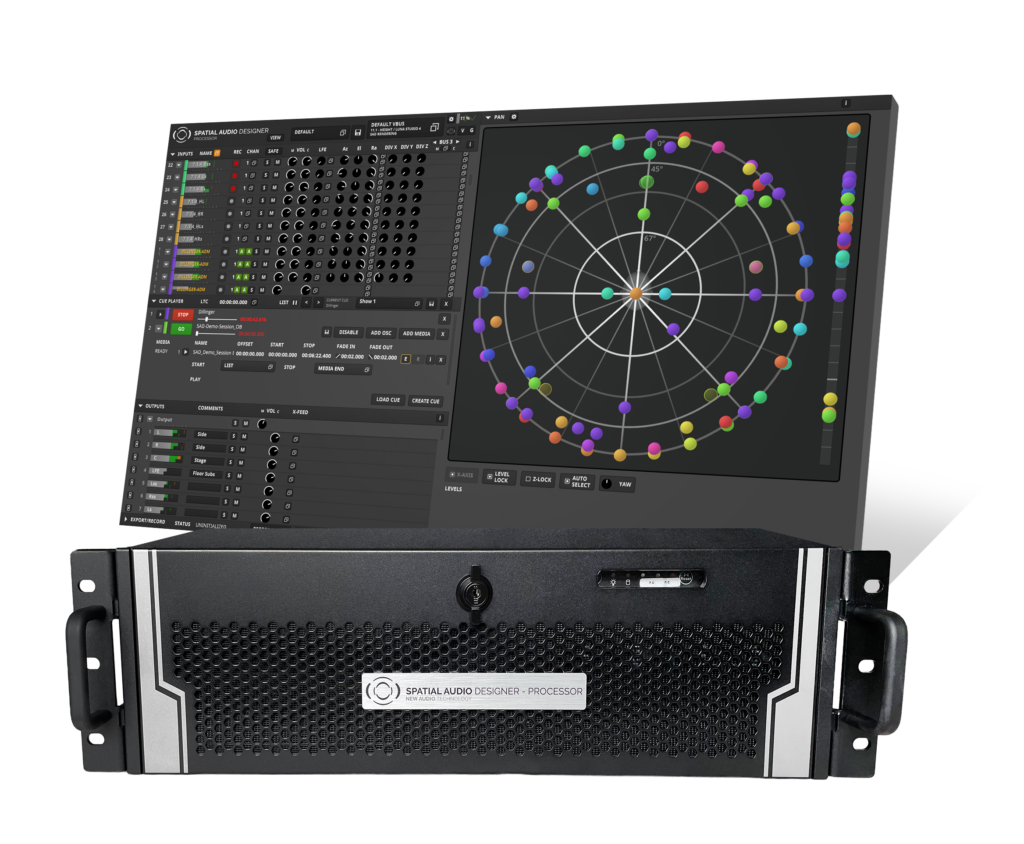

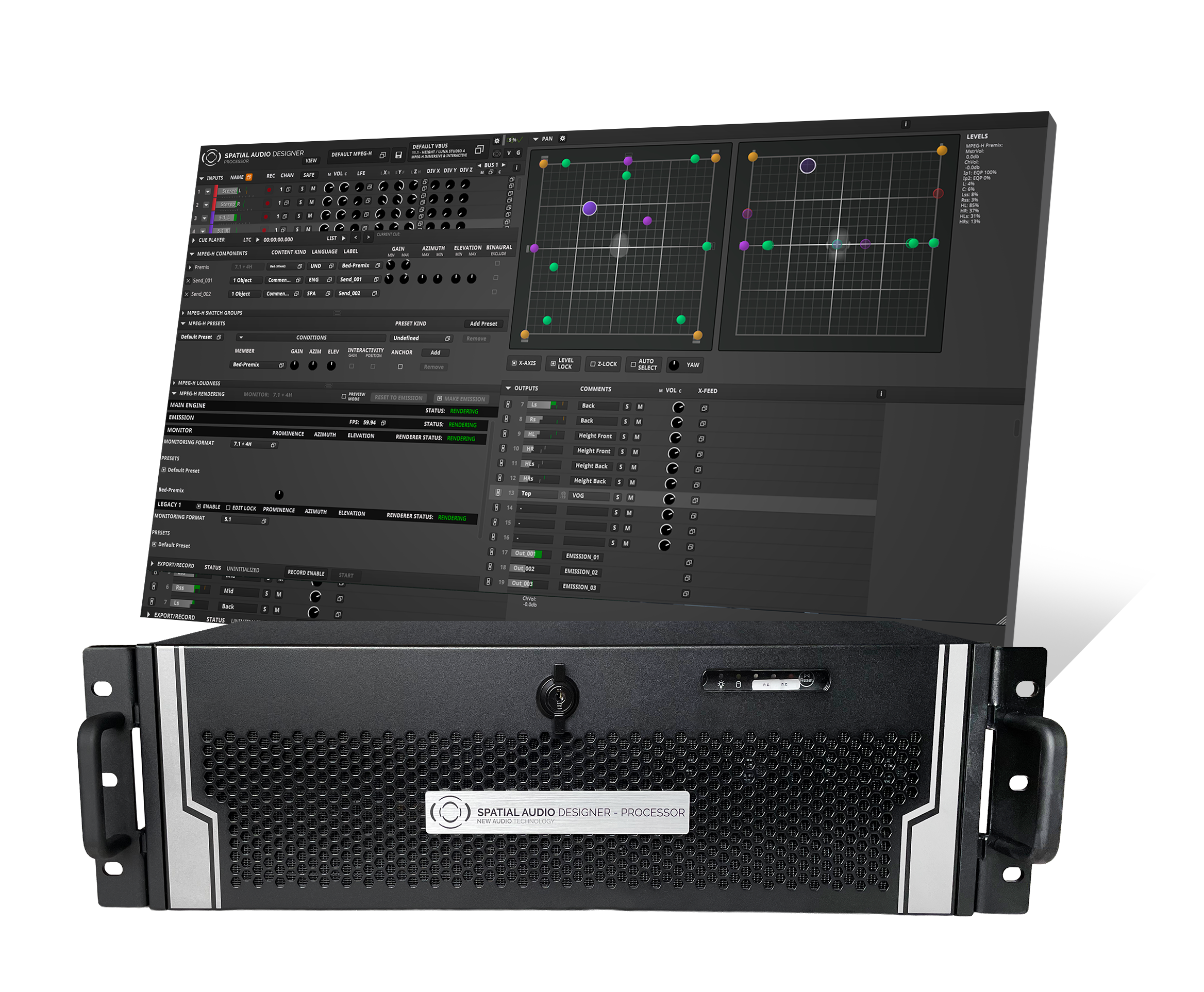

The Spatial Audio Designer Processor (SAD-P) can meet all the demands of current and future spatial, interactive, and broadcast audio applications. The SAD-P allows for 100% real-time and object-based processing and supports a complete MPEG-H end-to-end workflow. The device is flexible and can be implemented in any new or existing installations or broadcasting environments.
Based on over a decade of feedback from Skywalker Sound, Galaxy Studio, Kraftwerk, Grammy Award-winning, and Fraunhofer sound engineers, we’re proud of the clear and straightforward interface that our SAD-P offers. It offers many powerful features for sound engineers but also easy control for standard show operators.
Broadly immersive and interactive audio mixes alike can be managed with our SAD-P. Every audio input source or “object” can be controlled individually, in custom groups or format groups such as stereo or 5.1/7.1 surround sound. An output format could be a standard speaker configuration like 5.1, Dolby Atmos – 7.1.2, MPEG-H – 7.1+4, or IMAX 3D – 12.0, but it’s also possible to create and feed custom configurations like a fulldome 64-speaker environment. With SAD-P, you’re just a click away from the format you need.
Our SAD plug-in supports content creation from any audio workstation and for any standard sound studio environment. It features a well-established and award-winning binaural loudspeaker simulator for regular headphones to support monitoring of the production in smaller mixing environments, on-the-go, and streaming.
The SAD-P lets you have control from any device, including computers, mixing desks, mobile apps, touchscreens via the internet, and can even be linked to further processors.
It also can take you step by step through full MPEG-H production for broadcast applications. Mixing, authoring, monitoring, real-time, and offline export/streaming is supported, as well as offline encoding.
Finally, the SAD-P can record complete input streams – including metadata – as generic object-based masters and render them offline into any object- and/or channel-based format needed.
A Cue Media Player allows playing SAD-P object-based recordings instantly as well as ADMs and Wave files. All formats will be played individually on any given output configuration.
An ever-growing number of institutes like the Experimenta Science Dome in Heilbronn or planetariums like those in Bochum, Mannheim, and Hamburg are already using the SAD-P for their complete spatial audio reproductions and management. This has led to our SAD-P becoming a standard in spatial audio industry applications.
Key Features
- Ready-to-use turnkey system
- 100% object-based editing and rendering
- Advanced intuitive spatial control, placement, and movement of audio objects and groups in a 3D user interface
- Support for many standard channel formats and custom configurations
- Mobile remote app
- Award-winning, industry-standard binaural headphone processing and editing capabilities
- Plug-in support for pre-/postproduction in digital audio/video workstations
- Complete audio scene rotation
- Low-latency processing
- Up to 128 I/O with DANTE and more with MADI
- MPEG-H production at its best with integrated Fraunhofer IIS engine
- Touchscreen support
- Supports OSC and EMBER+ remote protocols
- Complete output channel monitoring, calibration and metering
- Instantly save and load complete scene presets
- Speaker zone grouping and management
- Capture/record all inputs as generic object-based master
- Export offline to versatile channel and object-based delivery master
- Immersive multi-format Cue Media Player
- No extra computer needed to control the processor
- Complete in-house technology
- Software customization upon request
Technical specifications
Operating System: Windows Server 2019
CPU: Xeon, 6-8 Core
Frame: 19-inch 1U Dell professional rack server
HDD: 0.25 GB RAID 1, SSD system discs
Power supply: Redundant Class A power
I/O Interface: DANTE/AES67/MADI/AVB (Melan)
I/O Scale direction: Up to 192 channels each direction
Remote interface: OSC, EMBER+
Sampling rate: 44.1 – 96Khz
Bit depth: 16-24 (32 with MADI)
Latency: < 3ms (depending on interface and input amount)
Cooling: Low fan noise rack
